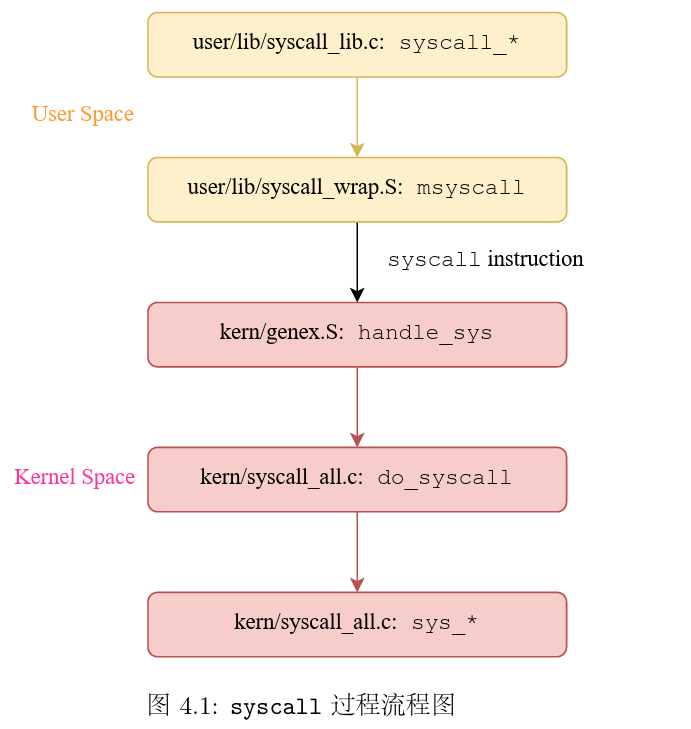

void do_syscall(struct Trapframe *tf) {
	int (*func)(u_int, u_int, u_int, u_int, u_int);
	int sysno = tf->regs[4]; // 系统调用号
	if (sysno < 0 || sysno >= MAX_SYSNO) {
		tf->regs[2] = -E_NO_SYS;
		return;
	}

	/* Step 1: Add the EPC in 'tf' by a word (size of an instruction). */
	/* Exercise 4.2: Your code here. (1/4) */
	tf->cp0_epc += 4;
	/* Step 2: Use 'sysno' to get 'func' from 'syscall_table'. */
	/* Exercise 4.2: Your code here. (2/4) */
	func = syscall_table[sysno];

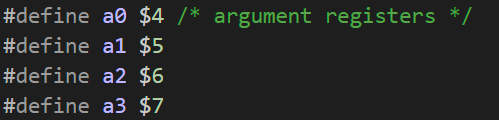

	/* Step 3: First 3 args are stored in $a1, $a2, $a3. */
	u_int arg1 = tf->regs[5];
	u_int arg2 = tf->regs[6];
	u_int arg3 = tf->regs[7];

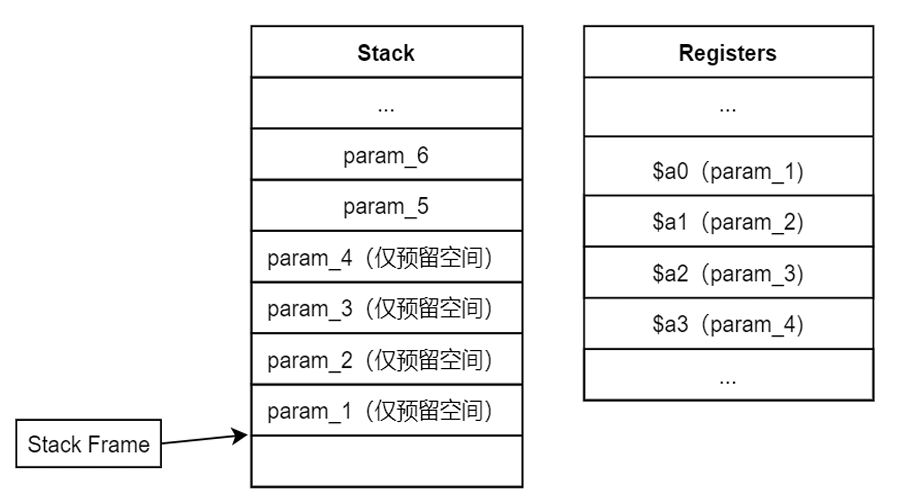

	/* Step 4: Last 2 args are stored in stack at [$sp + 16 bytes], [$sp + 20 bytes]. */
	u_int arg4, arg5;
	/* Exercise 4.2: Your code here. (3/4) */
	arg4 = *(u_long*)(tf->regs[29] + 16);
	arg5 = *(u_long*)(tf->regs[29] + 20);
	/* Step 5: Invoke 'func' with retrieved arguments and store its return value to $v0 in 'tf'.
	 */
	/* Exercise 4.2: Your code here. (4/4) */
	tf->regs[2] = func(arg1,arg2,arg3,arg4,arg5);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

int envid2env(u_int envid, struct Env **penv, int checkperm) {
	struct Env *e;

	/* Step 1: Assign value to 'e' using 'envid'. */
	/* Hint:
	 *   If envid is zero, set 'penv' to 'curenv' and return 0.
	 *   You may want to use 'ENVX'.
	 */
	/* Exercise 4.3: Your code here. (1/2) */
	if (envid == 0) {
		*penv = curenv;
		return 0;
	}
	e = &envs[ENVX(envid)];
	if (e->env_status == ENV_FREE || e->env_id != envid) {
		return -E_BAD_ENV;
	}

	/* Step 2: Check when 'checkperm' is non-zero. */
	/* Hints:
	 *   Check whether the calling env has sufficient permissions to manipulate the
	 *   specified env,
	 *   i.e. 'e' is either 'curenv' or its immediate child. i.e.means in other words
	 *   If violated, return '-E_BAD_ENV'.
	 */
	/* Exercise 4.3: Your code here. (2/2) */
	if (checkperm && (e->env_id != curenv->env_id) && (e->env_parent_id != curenv->env_id)) {
		return -E_BAD_ENV;
	}
	/* Step 3: Assign 'e' to '*penv'. */
	*penv = e;
	return 0;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

int sys_mem_alloc(u_int envid, u_int va, u_int perm) {
	struct Env *env;
	struct Page *pp;

	/* Step 1: Check if 'va' is a legal user virtual address using 'is_illegal_va'. */
	/* Exercise 4.4: Your code here. (1/3) */
	if (is_illegal_va(va)) {
		return -E_INVAL;
	}
	/* Step 2: Convert the envid to its corresponding 'struct Env *' using 'envid2env'. */
	/* Hint: **Always** validate the permission in syscalls! */
	/* Exercise 4.4: Your code here. (2/3) */
	try(envid2env(envid,&env,1));
	/* Step 3: Allocate a physical page using 'page_alloc'. */
	/* Exercise 4.4: Your code here. (3/3) */
	try(page_alloc(&pp));
	/* Step 4: Map the allocated page at 'va' with permission 'perm' using 'page_insert'. */
	return page_insert(env->env_pgdir, env->env_asid, pp, va, perm);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

int sys_mem_map(u_int srcid, u_int srcva, u_int dstid, u_int dstva, u_int perm) {
	struct Env *srcenv;
	struct Env *dstenv;
	struct Page *pp;

	/* Step 1: Check if 'srcva' and 'dstva' are legal user virtual addresses using
	 * 'is_illegal_va'. */
	/* Exercise 4.5: Your code here. (1/4) */
	if (is_illegal_va(srcva) || is_illegal_va(dstva)) {
		return -E_INVAL;
	}
	/* Step 2: Convert the 'srcid' to its corresponding 'struct Env *' using 'envid2env'. */
	/* Exercise 4.5: Your code here. (2/4) */
	try(envid2env(srcid,&srcenv,1));
	/* Step 3: Convert the 'dstid' to its corresponding 'struct Env *' using 'envid2env'. */
	/* Exercise 4.5: Your code here. (3/4) */
	try(envid2env(dstid,&dstenv,1));
	/* Step 4: Find the physical page mapped at 'srcva' in the address space of 'srcid'. */
	/* Return -E_INVAL if 'srcva' is not mapped. */
	/* Exercise 4.5: Your code here. (4/4) */
	pp = page_lookup(srcenv->env_pgdir,srcva,NULL);
	if (!pp) {
		return -E_INVAL;
	}
	/* Step 5: Map the physical page at 'dstva' in the address space of 'dstid'. */
	return page_insert(dstenv->env_pgdir, dstenv->env_asid, pp, dstva, perm);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

int sys_mem_unmap(u_int envid, u_int va) {
	struct Env *e;

	/* Step 1: Check if 'va' is a legal user virtual address using 'is_illegal_va'. */
	/* Exercise 4.6: Your code here. (1/2) */
	if (is_illegal_va(va)) {
		return -E_INVAL;
	}
	/* Step 2: Convert the envid to its corresponding 'struct Env *' using 'envid2env'. */
	/* Exercise 4.6: Your code here. (2/2) */
	try(envid2env(envid,&e,1));
	/* Step 3: Unmap the physical page at 'va' in the address space of 'envid'. */
	page_remove(e->env_pgdir, e->env_asid, va);
	return 0;
}

1
2
3
4
5

void __attribute__((noreturn)) sys_yield(void) {
	// Hint: Just use 'schedule' with 'yield' set.
	/* Exercise 4.7: Your code here. */
	schedule(1);
}

1
2
3
4
5
6
7
8

struct Env {
	// Lab 4 IPC
	u_int env_ipc_value;   // the value sent to us
	u_int env_ipc_from;    // envid of the sender
	u_int env_ipc_recving; // whether this env is blocked receiving
	u_int env_ipc_dstva;   // va at which the received page should be mapped
	u_int env_ipc_perm;    // perm in which the received page should be mapped
};

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

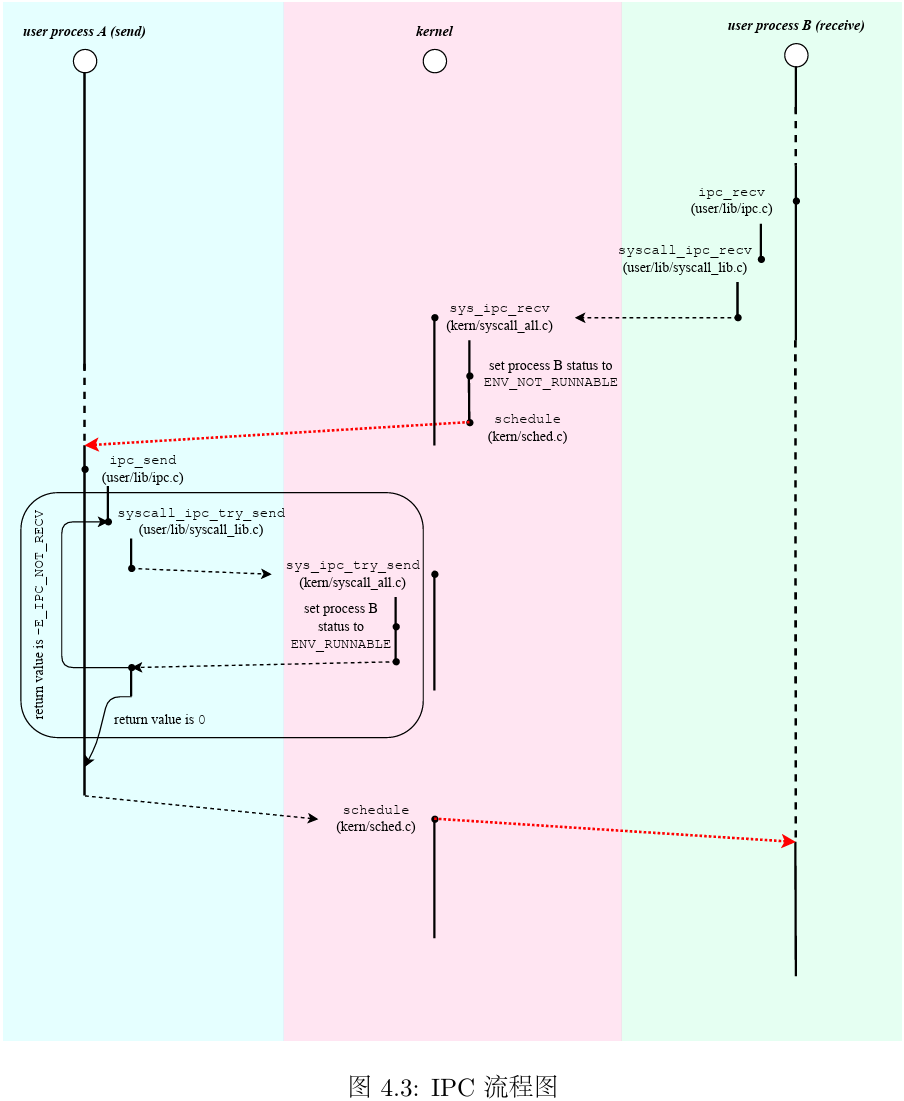

int sys_ipc_recv(u_int dstva) {
	/* Step 1: Check if 'dstva' is either zero or a legal address. */
	if (dstva != 0 && is_illegal_va(dstva)) {
		return -E_INVAL;
	}

	/* Step 2: Set 'curenv->env_ipc_recving' to 1. */
	/* Exercise 4.8: Your code here. (1/8) */
	curenv->env_ipc_recving = 1;
	/* Step 3: Set the value of 'curenv->env_ipc_dstva'. */
	/* Exercise 4.8: Your code here. (2/8) */
	curenv->env_ipc_dstva = dstva;
	/* Step 4: Set the status of 'curenv' to 'ENV_NOT_RUNNABLE' and remove it from
	 * 'env_sched_list'. */
	/* Exercise 4.8: Your code here. (3/8) */
	curenv->env_status = ENV_NOT_RUNNABLE;
	TAILQ_REMOVE(&env_sched_list,curenv,env_sched_link);
	/* Step 5: Give up the CPU and block until a message is received. */
	((struct Trapframe *)KSTACKTOP - 1)->regs[2] = 0;
	schedule(1);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

int sys_ipc_try_send(u_int envid, u_int value, u_int srcva, u_int perm) {
	struct Env *e;
	struct Page *p;

	/* Step 1: Check if 'srcva' is either zero or a legal address. */
	/* Exercise 4.8: Your code here. (4/8) */
	if (srcva != 0 && is_illegal_va(srcva)) {
		return -E_INVAL;
	}
	/* Step 2: Convert 'envid' to 'struct Env *e'. */
	/* This is the only syscall where the 'envid2env' should be used with 'checkperm' UNSET,
	 * because the target env is not restricted to 'curenv''s children. */
	/* Exercise 4.8: Your code here. (5/8) */
	try(envid2env(envid,&e,0));
	/* Step 3: Check if the target is waiting for a message. */
	/* Exercise 4.8: Your code here. (6/8) */
	if (e->env_ipc_recving != 1) {
		return -E_IPC_NOT_RECV;
	}
	/* Step 4: Set the target's ipc fields. */
	e->env_ipc_value = value;
	e->env_ipc_from = curenv->env_id;
	e->env_ipc_perm = PTE_V | perm;
	e->env_ipc_recving = 0;

	/* Step 5: Set the target's status to 'ENV_RUNNABLE' again and insert it to the tail of
	 * 'env_sched_list'. */
	/* Exercise 4.8: Your code here. (7/8) */
	e->env_status = ENV_RUNNABLE;
	TAILQ_INSERT_TAIL(&env_sched_list,e,env_sched_link);
	/* Step 6: If 'srcva' is not zero, map the page at 'srcva' in 'curenv' to 'e->env_ipc_dstva'
	 * in 'e'. */
	/* Return -E_INVAL if 'srcva' is not zero and not mapped in 'curenv'. */
	if (srcva != 0) {
		/* Exercise 4.8: Your code here. (8/8) */
		p = page_lookup(curenv->env_pgdir,srcva,NULL);
		if (!p) {
			return -E_INVAL;
		}
		try(page_insert(e->env_pgdir,e->env_asid,p,e->env_ipc_dstva,perm));
	}
	return 0;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

int sys_exofork(void) {
	struct Env *e;

	/* Step 1: Allocate a new env using 'env_alloc'. */
	/* Exercise 4.9: Your code here. (1/4) */
	try(env_alloc(&e,curenv->env_id));
	/* Step 2: Copy the current Trapframe below 'KSTACKTOP' to the new env's 'env_tf'. */
	/* Exercise 4.9: Your code here. (2/4) */
	e->env_tf = *((struct Trapframe*)KSTACKTOP - 1);
	/* Step 3: Set the new env's 'env_tf.regs[2]' to 0 to indicate the return value in child. */
	/* Exercise 4.9: Your code here. (3/4) */
	e->env_tf.regs[2] = 0;
	/* Step 4: Set up the new env's 'env_status' and 'env_pri'.  */
	/* Exercise 4.9: Your code here. (4/4) */
	e->env_status = ENV_NOT_RUNNABLE;
	e->env_pri = curenv->env_pri;
	return e->env_id;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

static void duppage(u_int envid, u_int vpn) {
	int r;
	u_int addr;
	u_int perm;

	/* Step 1: Get the permission of the page. */
	/* Hint: Use 'vpt' to find the page table entry. */
	/* Exercise 4.10: Your code here. (1/2) */
	perm = vpt[vpn] & 0xfff; //virtual page table[virtual page number]
	/* Step 2: If the page is writable, and not shared with children, and not marked as COW yet,
	 * then map it as copy-on-write, both in the parent (0) and the child (envid). */
	/* Hint: The page should be first mapped to the child before remapped in the parent. (Why?)
	 */
	/* Exercise 4.10: Your code here. (2/2) */
	addr = vpn * PAGE_SIZE;
	if (!(perm & PTE_D) || (perm & PTE_LIBRARY)) { //实际上包含了 perm & PTE_COW的情况 因为若该页面为写时复制权限，说明已经被fork过一次，即PTE_D=0 & PTE_COW = 1
		syscall_mem_map(0,(void*)addr,envid,(void*)addr,perm);//源进程 源地址 新进程 新地址
	} else {
		perm = (perm & ! PTE_D) | PTE_COW;
		syscall_mem_map(0,(void*)addr,envid,(void*)addr,perm); // first mapped to the child
		syscall_mem_map(0,(void*)addr,0,(void*)addr,perm);
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

void do_tlb_mod(struct Trapframe *tf) {
	struct Trapframe tmp_tf = *tf;

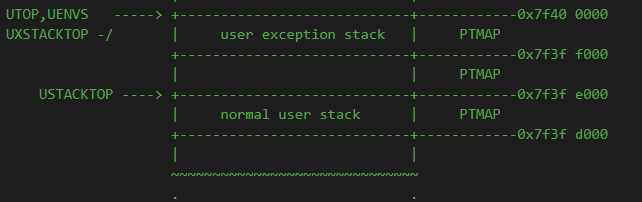

	if (tf->regs[29] < USTACKTOP || tf->regs[29] >= UXSTACKTOP) { // 调整栈指针到异常处理栈
		tf->regs[29] = UXSTACKTOP;
	}
	tf->regs[29] -= sizeof(struct Trapframe);
	*(struct Trapframe *)tf->regs[29] = tmp_tf;
	Pte *pte;
	page_lookup(cur_pgdir, tf->cp0_badvaddr, &pte);
	if (curenv->env_user_tlb_mod_entry) {
		tf->regs[4] = tf->regs[29];
		tf->regs[29] -= sizeof(tf->regs[4]);
		// Hint: Set 'cp0_epc' in the context 'tf' to 'curenv->env_user_tlb_mod_entry'.
		/* Exercise 4.11: Your code here. */
		tf->cp0_epc = curenv->env_user_tlb_mod_entry;
	} else {
		panic("TLB Mod but no user handler registered");
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

int sys_set_tlb_mod_entry(u_int envid, u_int func) {
	struct Env *env;

	/* Step 1: Convert the envid to its corresponding 'struct Env *' using 'envid2env'. */
	/* Exercise 4.12: Your code here. (1/2) */
	try(envid2env(envid,&env,1));
	/* Step 2: Set its 'env_user_tlb_mod_entry' to 'func'. */
	/* Exercise 4.12: Your code here. (2/2) */
	env->env_user_tlb_mod_entry = func;
	return 0;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

static void __attribute__((noreturn)) cow_entry(struct Trapframe *tf) {
	u_int va = tf->cp0_badvaddr; // 发生异常的地址
	u_int perm;

	/* Step 1: Find the 'perm' in which the faulting address 'va' is mapped. */
	/* Hint: Use 'vpt' and 'VPN' to find the page table entry. If the 'perm' doesn't have
	 * 'PTE_COW', launch a 'user_panic'. */
	/* Exercise 4.13: Your code here. (1/6) */
	perm = vpt[VPN(va)] & 0xfff;
	if (!(perm & PTE_COW)) { // 检查权限位 ：检查是不是COW页
		user_panic("The permission of the page of va 0x%x doesn't has PTE_COW!",va);
	}
	/* Step 2: Remove 'PTE_COW' from the 'perm', and add 'PTE_D' to it. */
	/* Exercise 4.13: Your code here. (2/6) */
	perm = (perm & !PTE_COW) | PTE_D;
	/* Step 3: Allocate a new page at 'UCOW'. */
	/* Exercise 4.13: Your code here. (3/6) */
	syscall_mem_alloc(0,(void*)UCOW,PTE_D);
	/* Step 4: Copy the content of the faulting page at 'va' to 'UCOW'. */
	/* Hint: 'va' may not be aligned to a page! */
	/* Exercise 4.13: Your code here. (4/6) */
	va = ROUNDDOWN(va,PAGE_SIZE);
	memcpy((void*)UCOW,(const void*)va,PAGE_SIZE);
	// Step 5: Map the page at 'UCOW' to 'va' with the new 'perm'.
	/* Exercise 4.13: Your code here. (5/6) */
	syscall_mem_map(0,(void*)UCOW,0,(void*)va,perm);
	// Step 6: Unmap the page at 'UCOW'.
	/* Exercise 4.13: Your code here. (6/6) */
	syscall_mem_unmap(0,(void*)UCOW);
	// Step 7: Return to the faulting routine.
	int r = syscall_set_trapframe(0, tf);
	user_panic("syscall_set_trapframe returned %d", r);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

int sys_set_env_status(u_int envid, u_int status) {
	struct Env *env;

	/* Step 1: Check if 'status' is valid. */
	/* Exercise 4.14: Your code here. (1/3) */
	if (status != ENV_RUNNABLE && status != ENV_NOT_RUNNABLE) {
		return -E_INVAL;
	}
	/* Step 2: Convert the envid to its corresponding 'struct Env *' using 'envid2env'. */
	/* Exercise 4.14: Your code here. (2/3) */
	try(envid2env(envid,&env,1));
	/* Step 3: Update 'env_sched_list' if the 'env_status' of 'env' is being changed. */
	/* Exercise 4.14: Your code here. (3/3) */
	if (env->env_status != status) {
		if (status == ENV_RUNNABLE) { //加入调度队列
			TAILQ_INSERT_TAIL(&env_sched_list,env,env_sched_link);
		} else { // 从调度队列取出
			TAILQ_REMOVE(&env_sched_list,env,env_sched_link);
		}
	}
	/* Step 4: Set the 'env_status' of 'env'. */
	env->env_status = status;
	return 0;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

int fork(void) {
	u_int child;
	u_int i;

	/* Step 1: Set our TLB Mod user exception entry to 'cow_entry' if not done yet. */
	if (env->env_user_tlb_mod_entry != (u_int)cow_entry) {
		try(syscall_set_tlb_mod_entry(0, cow_entry));
	}

	/* Step 2: Create a child env that's not ready to be scheduled. */
	// Hint: 'env' should always point to the current env itself, so we should fix it to the
	// correct value.
	child = syscall_exofork();
	if (child == 0) {
		env = envs + ENVX(syscall_getenvid());
		return 0; // 子进程在此返回
	}

	/* Step 3: Map all mapped pages below 'USTACKTOP' into the child's address space. */
	// Hint: You should use 'duppage'.
	/* Exercise 4.15: Your code here. (1/2) */
	for (i = 0;i < PDX(ROUND(USTACKTOP,PDMAP));i++) {
		if (vpd[i] & PTE_V) {
			for (u_int j = 0;j < 1024;j++) {
				u_int vpn = (i << 10) | j;
				if ((vpn < VPN(USTACKTOP) && (vpt[vpn] & PTE_V))) {
					duppage(child,vpn);
				}
			}
		}
	}
	/* Step 4: Set up the child's tlb mod handler and set child's 'env_status' to
	 * 'ENV_RUNNABLE'. */
	/* Hint:
	 *   You may use 'syscall_set_tlb_mod_entry' and 'syscall_set_env_status'
	 *   Child's TLB Mod user exception entry should handle COW, so set it to 'cow_entry'
	 */
	/* Exercise 4.15: Your code here. (2/2) */
	syscall_set_tlb_mod_entry(child,cow_entry);
	syscall_set_env_status(child,ENV_RUNNABLE);
	return child;
}
